1 Introduction

[1] TINYBERT: DISTILLING BERT FOR NATURAL LANGUAGE UNDERSTANDING
Link : http://arxiv.org/abs/1909.10351
Institute：Huazhong University of Science and Technology, Huawei Noah’s Ark Lab, Huawei Technologies Co., Ltd.
Code : https://github.com/huawei-noah/Pretrained-Language-Model/tree/master/TinyBERT

1.1 Achievement

1. Propose a novel Transformer distillation method
2. Introduce a new two-stage learning framework.
3. Achieve 96% the performance of BERT_BASE while being 7.5x smaller and 9.4x faster on inference.

2 Method

2.1 Transformer Distillation

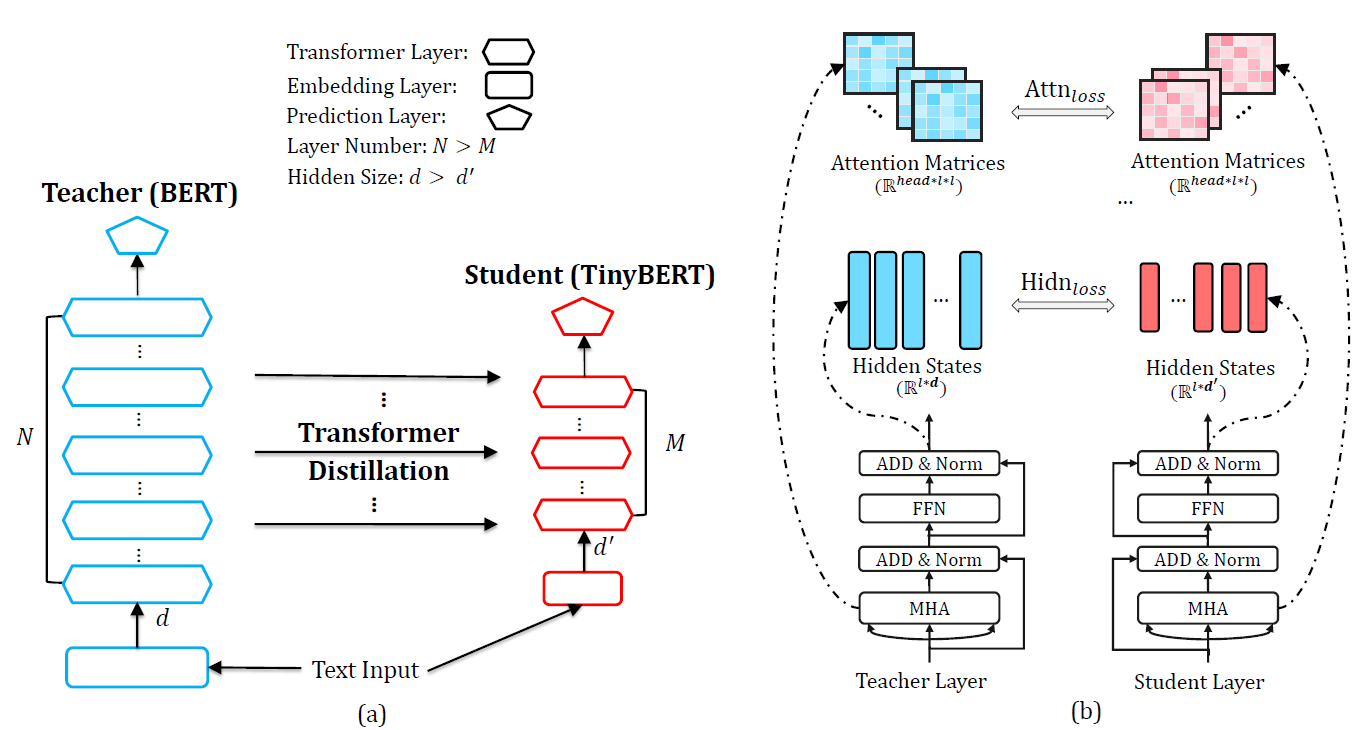

Figure 2.1: An overview of Transformer distillation[1]

Problem : Original BERT is too big and need too much time for training.

Requirement : Reduce the scale of BERT while maintaining almost the same performance.

Solution : (Teacher-Student Framework)

1. Choose M layers (Layer Num. of Student Model) from N layers of the Teacher Model for Transformer-layer distillation
2. Use n = g(m) to denote the mapping function
3. For embedding-layer distillation and prediction layer distillation, the corresponding layer mappings are denoted as 0 = g(0) and N + 1 = g(M + 1).
4. Loss Function:
   \begin{equation}
   L_{model} = \sum_{m=1}^{M+1}\lambda_mL_{layer}(S_m, T_{g(m)})
   \end{equation}
   * Where lambda_m is the hyper-parameter represents the importance of the m-th layer distillation, L_layer( ) is the loss function of a given layer pair.
   * This formula calculate the total loss of every layer ranged from 0 to M+1.

2.1.1 Transformer-layer Distillation

1. Use attention-based distillation to learn the matrices of multi-head attention in the teacher network
2. Attention-based Loss Function:
   \begin{equation}
   L_{attn} = \frac{1}{h}\sum_{i=1}^{h}MSE(A_i^S, A_i^T)
   \end{equation}
   * Where h is the number of attention heads, A_i(l*l) is the attention matrix of the i-th head, l is the length of the input text, MSE( ) is the mean square error function.
   * It shows that A_i without softmax has a faster convergence rate and better performance.
3. Use hidden states based distillation to learn the feature of hidden states in the teacher network
   * I think this part actually enable the student model to learn the feature of FNN in teacher model.
4. Hidden States based Loss Function:
   \begin{equation}
   L_{attn} = MSE(H^SW_h, H^T)
   \end{equation}
   * Where H^S (l*d’) and H^T (l*d) refer to the hidden states of student and teacher, W_h(d’*d) is a learnable linear transformation mapping student network into the vector space of teacher network, d’ and d refer to the hidden sizes of student and teacher network (Usually d’ < d) .

2.1.2 Embedding-layer Distillation

1. Use learnable matrix W_e to map student model into the vector space of teacher model
2. Embedding-based Loss Function:
   \begin{equation}
   L_{embd} = MSE(E^SW_e, E^T)
   \end{equation}
   * Where E_S and E_T refer to the embedding matrix of student and teacher model, W_e is the learnable linear transformation.

2.1.3 Prediction-Layer Distillation

1. Use soft cross-entropy loss:
   \begin{equation}
   L_{pred} = -softmax(z^T)log\_softmax(z^S / t)
   \end{equation}
   * Where z^T and z^S refer to the logits vector output by teacher and student model, t is the temperature value.
   * In the experiment, they find t = 1 performs well.

2.1.4 Final Distillation Objective Function

\begin{equation}
L_{layer}(S_m, T_{g(m)}) = \begin{cases} L_{embd}(S_0, T_0), & {m = 0}\newline L_{hidn}(S_m, T_{g(m)}) + L_{attn}(S_m, T_{g(m)}), & M \geq m > 0\newline L_{pred}(S_{M+1}, T_{N+1}), & m = M+1 \end{cases}
\end{equation}

2.2 TinyBERT Learning

They apply a two-stage learning framework:

1. General Distillation:
   Help TinyBERT learn rich knowledge embedding and improve the generaliztion capability of TinyBERT
2. Task-specific Distillation:
   Use specified task to enable TinyBERT to learn task-specific knowledge

2.2.1 General Distillation

1. Use the original BERT without fine-tuning as the teacher and a large-scale text corpus of general domain as the training data
2. Perform the above mentioned transformer distillation to obtain a general TinyBERT which may have worse performance than BERT

2.2.2 Task-specific Distillation

1. Use fine-tuned BERT as the teacher and a domain-specific dataset as the training data
2. Perform transformer distillation on the TinyBERT after general distillation

2.2.3 Discussion about Two-stage Learning Framework

The above two learning stages are complementary to each other:
*1. The general distillation provides a good initialization for the task-specific distillation.

2. The task-specific distillation further improves TinyBERT by focusing on learning the task-specific knowledge.
3. Finally, although there is a big gap between BERT and TinyBERT in model size, by performing the proposed two-stage distillation, the TinyBERT can achieve competitive performances in various NLP tasks.
   \ From the original paper

3 Experiment Result

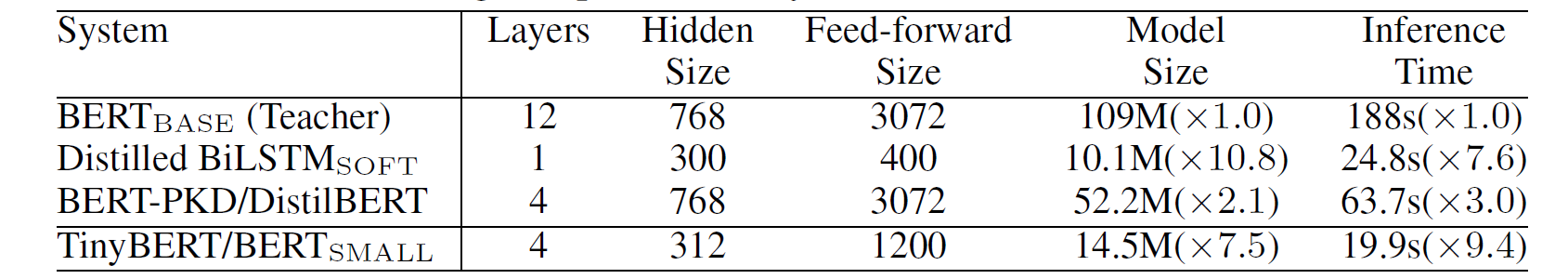

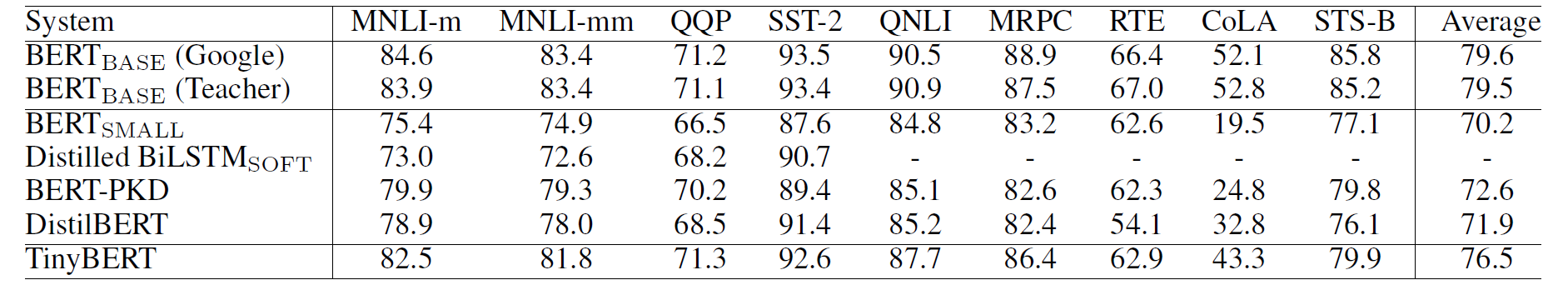

Table 3.1: Results of GLUE official benchmark[1] Table 3.2 The model sizes and inference time for baselines and TinyBERT[1]

The experiment results demonstrate that:
*1. There is a large performance gap between
BERT_SMALL and BERT_BASE due to the big reduction in model size.

2. TinyBERT is consistently better than BERT_SMALL in all the GLUE tasks and achieves a large improvement of 6.3% on average. This indicates that the proposed KD learning framework can effectively improve the performances of small models regardless of downstream tasks.
3. TinyBERT significantly outperforms the state-of-the-art KD baselines (i.e., BERT-PKD and DistillBERT) by a margin of at least 3.9%, even with only 28% parameters and 31% inference time of baselines.
4. Compared with the teacher BERT_BASE, TinyBERT is 7.5x smaller and 9.4x faster in the model efficiency, while maintaining competitive performances.*

* From the original paper

4 Conclusion

1. Introduce a new KD(Knowledge Distillation) method for transformer-based distillation
2. Propose a two-stage framework for TinyBERT learning
3. Achieves competitive performance while reducing the model size and the inference time
